JFrog CLI is a useful client that provides a simple interface that works smoothly with JFrog Artifactory and Jfrog Xray. The simplified CLI commands enable you to create readable automation scripts that are easy to maintain, efficient and reliable.

From version 1.14.0, JFrog CLI has extended its support to manage Docker builds, in addition to its npm, Maven and Gradle and GO build support.

In this blog post we’ll demonstrate how to use the Docker CLI commands to manage your Docker builds in Artifactory, and easily scan them using Xray. The following workflow will take you through the complete process:

  1. Configure Artifactory with JFrog CLI
  2. Build the Docker image
  3. Publish the build-info
  4. Scan the build with Xray
  5. Promote the build

Complete Process Workflow

Prerequisites

Before getting started, make sure you complete the following:

  1. Install JFrog CLI, using the following command:
    • $ curl -fL https://getcli.jfrog.io | sh
  1. Setup your environment:

1. Configure Artifactory with JFrog CLI

To configure the Artifactory server, all you have to do is run the CLI config command:

$jfrog rt config

Insert the Artifactory server ID, Artifactory URL and the credentials as the follows:

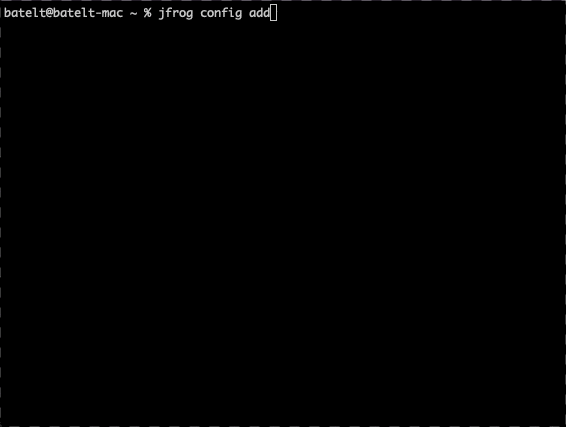

Configure Artifactory with JFrog CLI

2. Build the Docker image

Configure the Docker registry in Artifactory with reverse proxy. Alternatively, you can configure your Artifactory using the new proxyless option for non-production setups.

To make sure that the Docker client and the Artifactory Docker registry are configured correctly, run the following commands in order to pull the hello-world Docker image and then push it to Artifactory:

$docker login <artifactoryDockerRegistry>
$docker pull hello-world
$docker tag hello-world:latest <artifactoryDockerRegistry>/hello-world:latest
$docker push <artifactoryDockerRegistry>/hello-world:latest

After a successful deployment to Artifactory, you’re now ready to use JFrog CLI to push your image layers into Artifactory.

Note: When building a Docker image, the docker push command deploys the image layers to the Artifactory server and collects the build info.

To push the image and the build info to Artifactory run the Docker Push Image CLI command:

$jfrog rt dp my-docker-registry.io/my-docker-image:latest docker-repo --build-name=docker-build --build-number=1

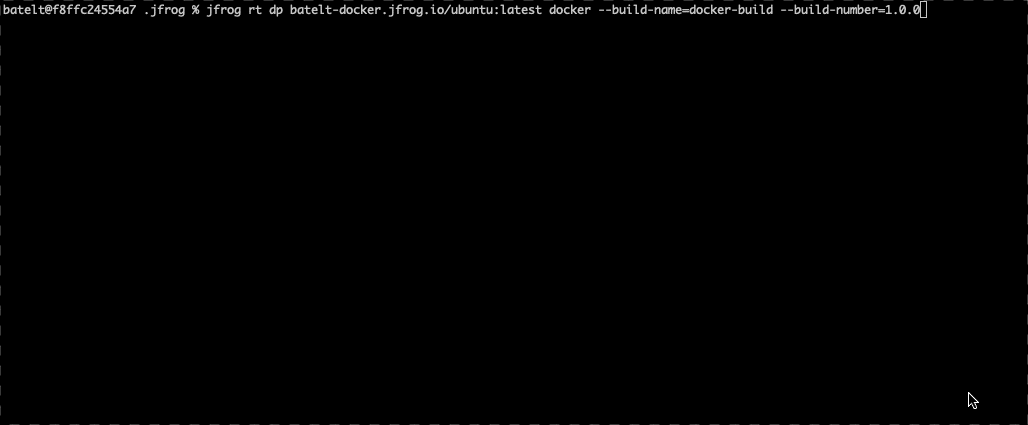

Build the Docker image

3. Publish the build-info

Use the jfrog build publish command will publish the build info to Artifactory:

$jfrog rt bp docker-build 1.0.0 docker

The build info will now be displayed in Artifactory:

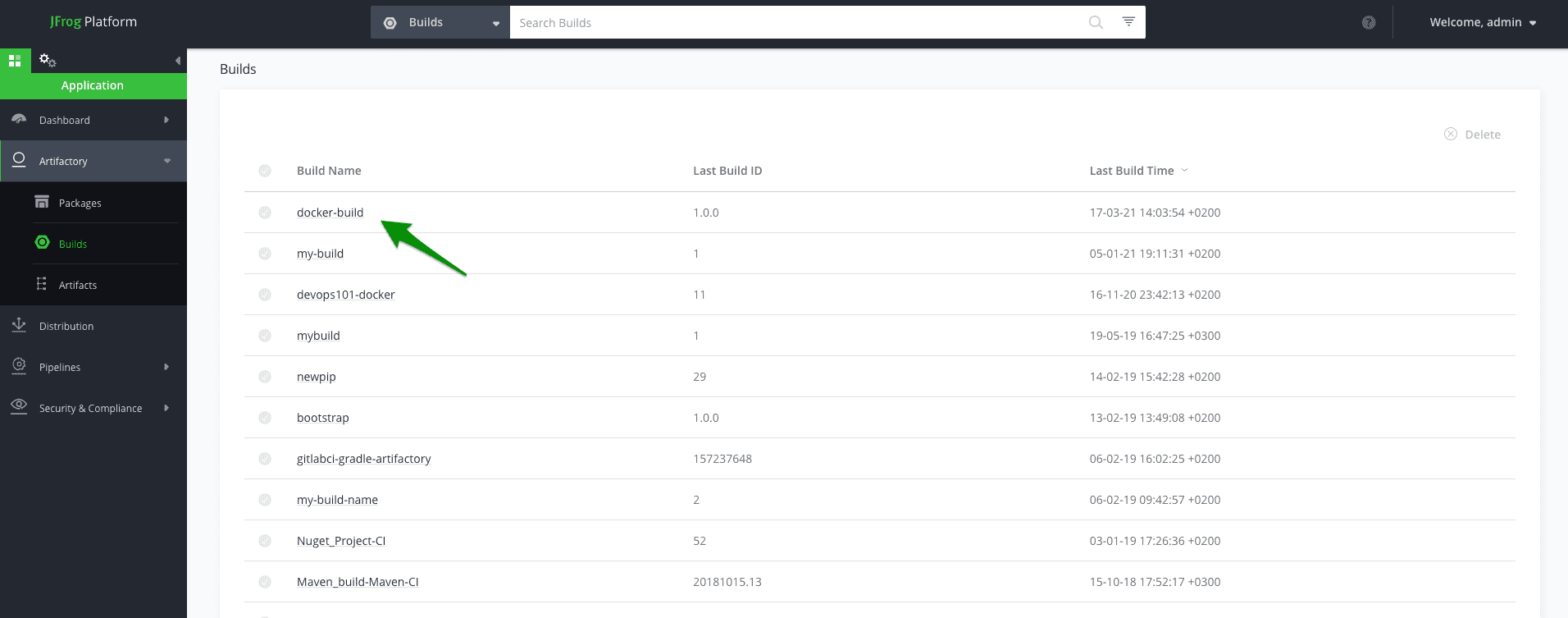

Build info in Artifactory

Use the package viewer to see the different Docker image layers directly from the Artifactory UI (available from Artifactory version 5.10):

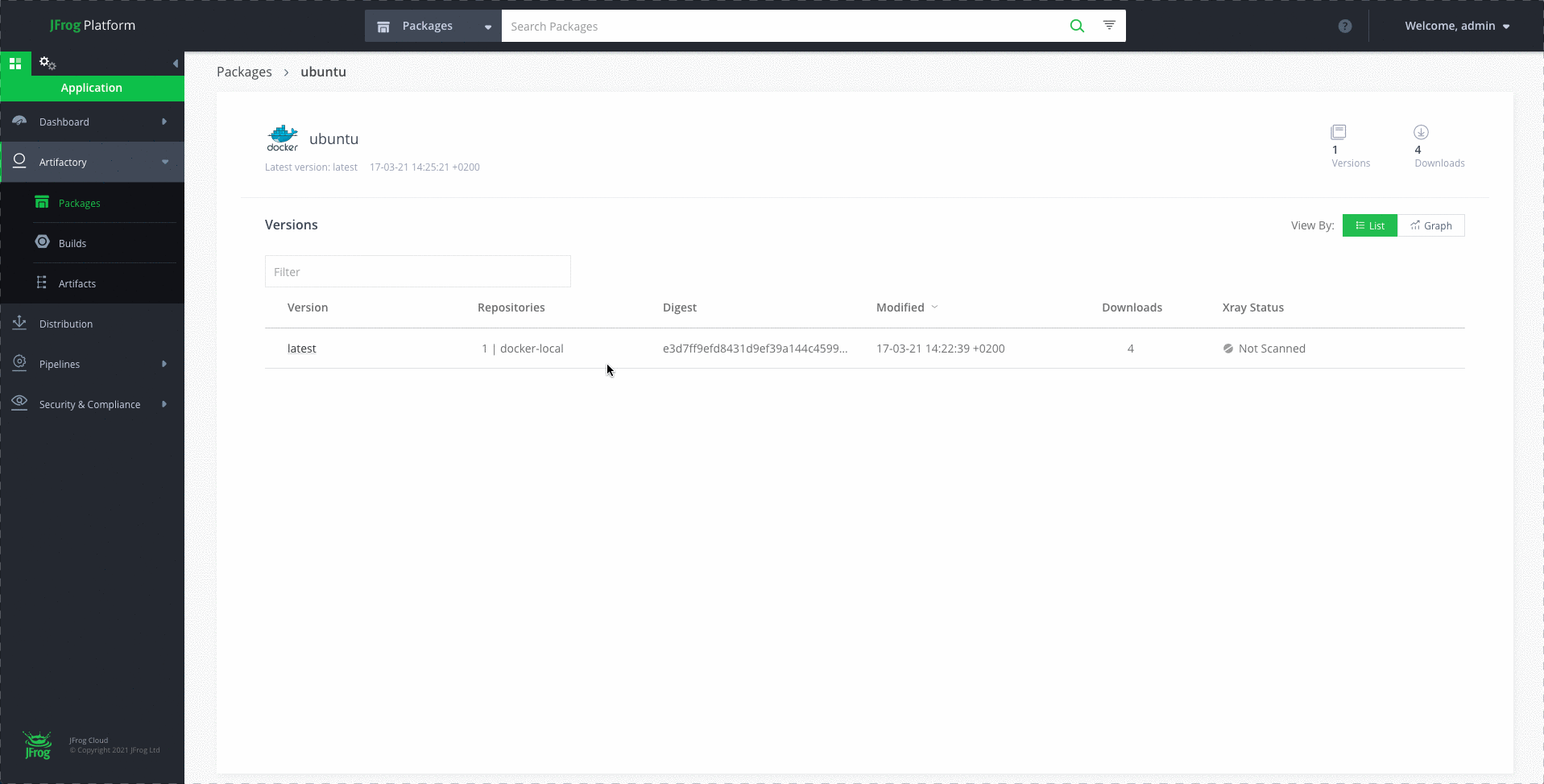

Viewing Docker image layers with the Artifactory package viewer

Step 4: Scan the build with Xray

JFrog Xray works with Artifactory to perform universal analysis of binary software components at any stage of the application lifecycle. By scanning binary components and their metadata, recursively going through dependencies at any level, Xray provides unprecedented visibility into issues lurking in components anywhere in your organization.

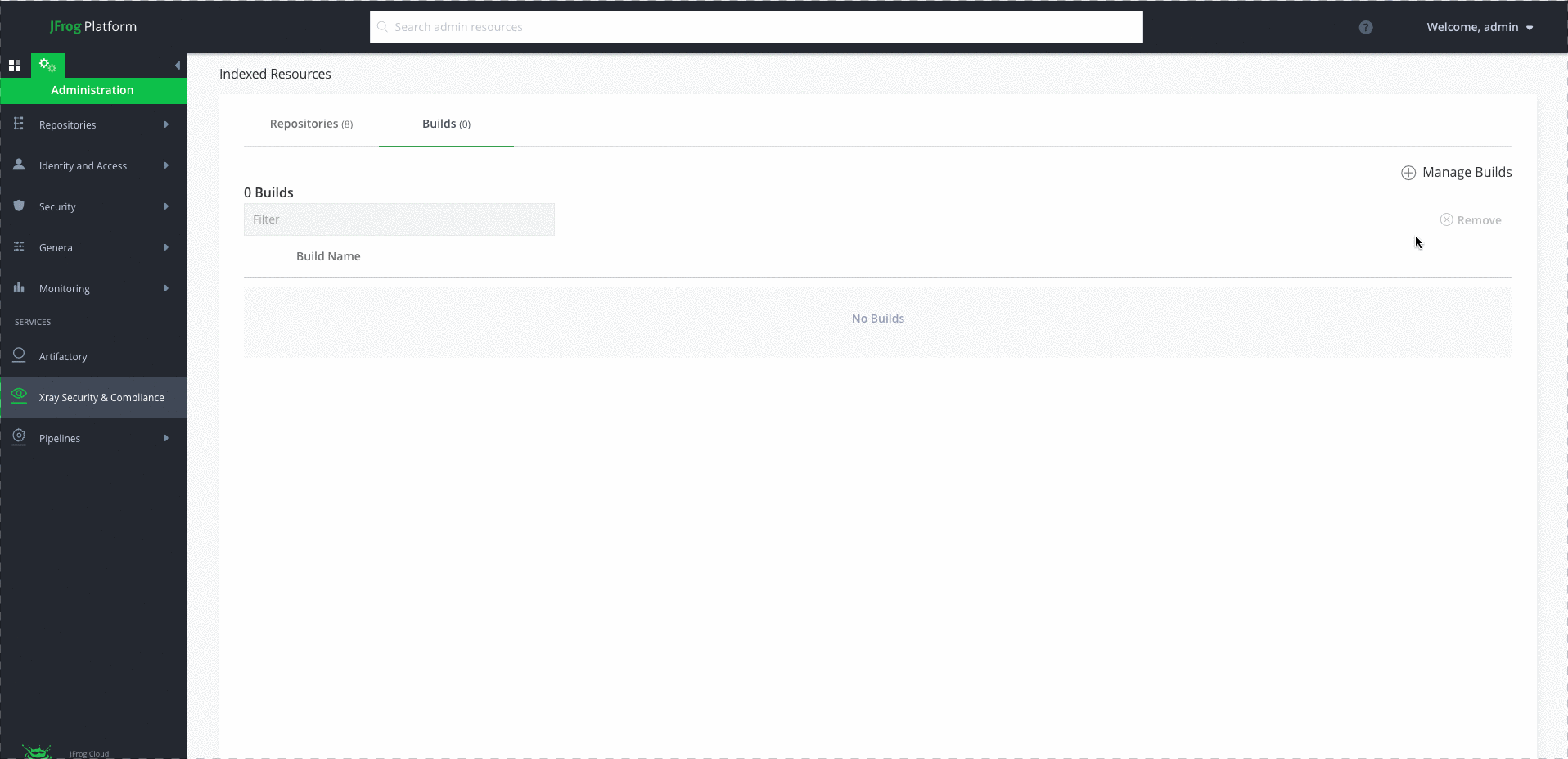

To scan your build using Xray, you need to add the build to the selected build list:

Then you can configure a new watch for this build:

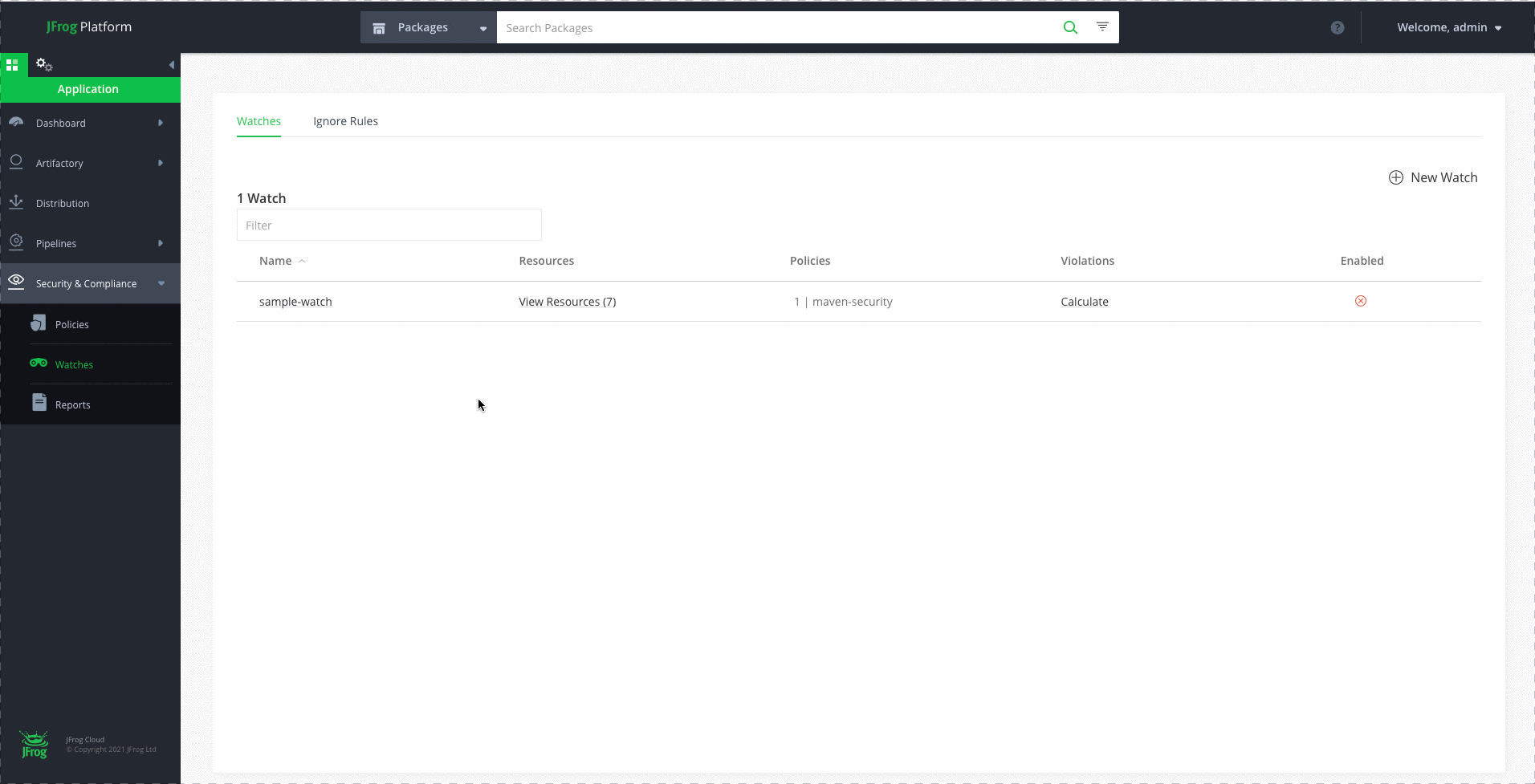

Configuring a new Watch in Xray

Note: This integration requires JFrog Artifactory v4.16 and above and JFrog Xray v1.6 and above.

To scan the build, use the build scan command:

$jfrog rt bs docker-build 1.0.0

5. Promote the build

Build promotion is usually used after testing or a build scan, optionally moving or copying the build artifacts and its dependencies to a target repository. When using promotion, you don’t have to build your Docker image multiple times before deploying it to production. This provides you with confidence that the image you tested is indeed the image that will make it to production.

To promote the build, run the build promotion command:

$jfrog rt bpr docker-build 1.0.0 docker-local

That’s it, we’re done!

Get Started with JFrog CLI and JFrog Xray.
